Advantages:

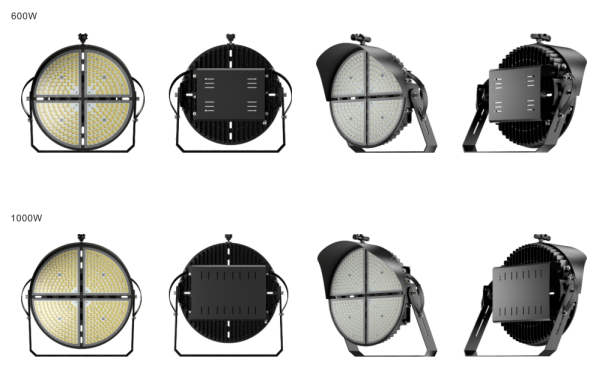

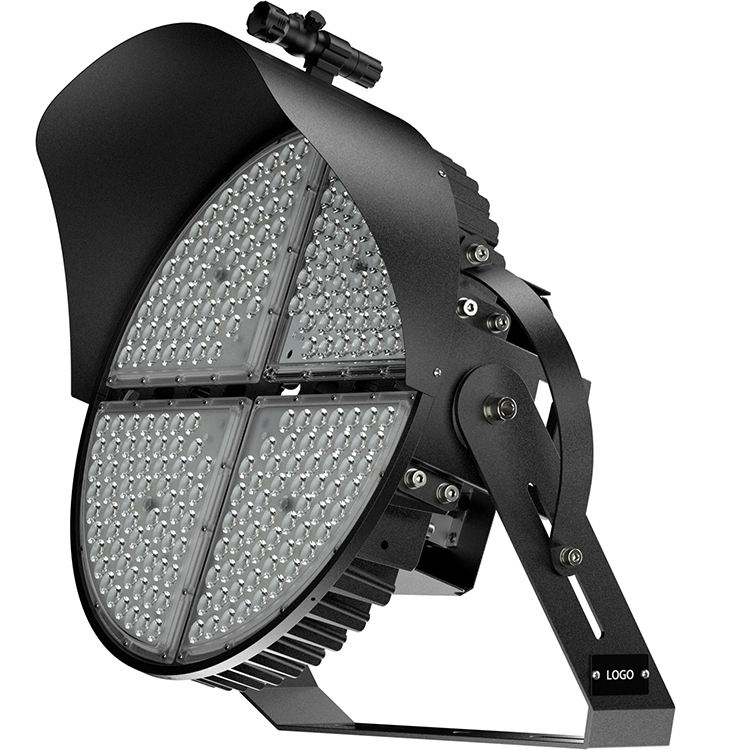

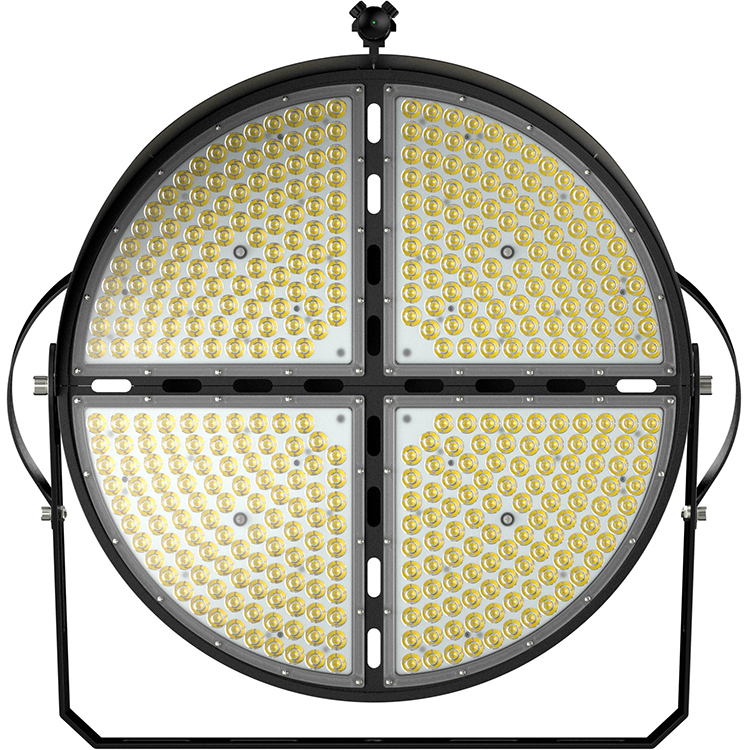

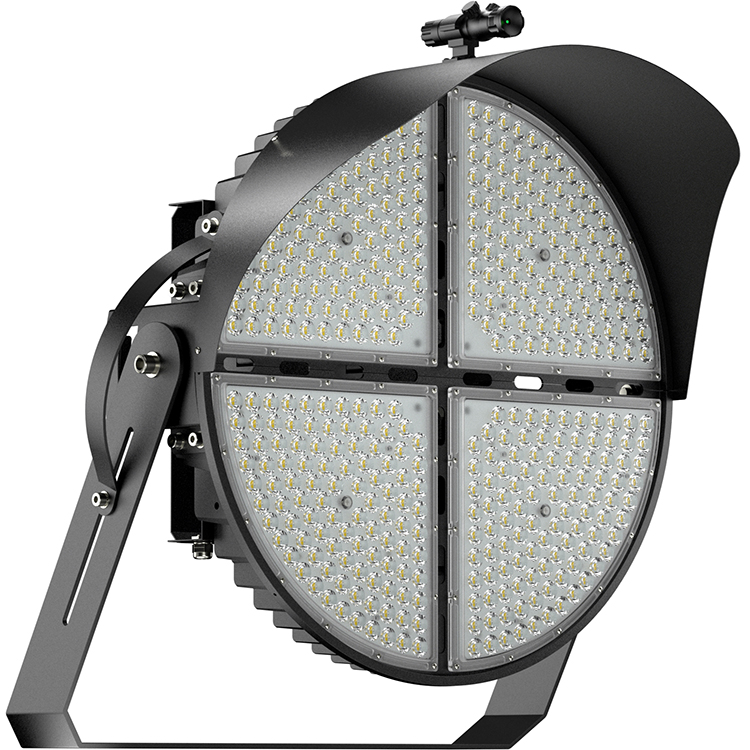

LED Sports Light, 400W-1200W
Housing: Die-casting aluminum ADC-12, greatly reduces thermal density and LED junction temperature. UV resistance and stabilized powder coated finish in pretty appearance.
Optical Lens: High light transmitiance PC, anti-UV and fire resistant, beam angle 15°/30°/45°/60° for optional.
Lightsource: High efficiency up to 150-160lm/w, Energy savings up to 60% over traditional HID sources for labor and material.
Driver: 120-277or 347-480V 50/60Hz,PF>0.9; THD<20%; 0-10V dimming options compatible with control systems.
Specification;Model NO
AL-SP02-400W
AL-SP02-600W
AL-SP02-800W
AL-SP02-1000W
Power Wattage
400W
600W
800W
1000W
Lumen Output (± 5%)
60000lm
90000lm
120000lm
150000lm
N.W (KG)
17KG
17KG
27KG
27KG
Replace HID Lamp
1000W
1500W
2000W
2500W
~
3000WPacking Size 1pcs/ctn
570*610*185cm
570*610*185cm
800*650*190cm
800*650*190cm
G.W(KG)
19KG
19KG
29KG
29KG
Input Voltage
AC100-277V
Power Factor
>0.95
Chip Brand
CREE/ Lumileds 3030
Driver Brand
Taiwan Meanwell/Sosen
Lumen Efficiency
150-160 lm/w
CRI
>70Ra
CCT
2700K-6500K
Beam Angel
15°/30°/60°/90°
Shell Material
ADC12 Aluminum
Life Span
50,000hours
IP Grade
IP65
Storage Temperature
-20°C ~ +70°C
Working Temperature
-35°C ~ +55°C
Working Humidity
10% ~ 95%
Options
0-10VDC, DALI
Mounting Type
Bracket 180° angle adjustable
THD
<10%
Warranty
5years
Installation height
8-45m

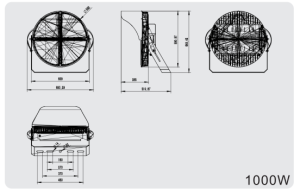

Profile chart:

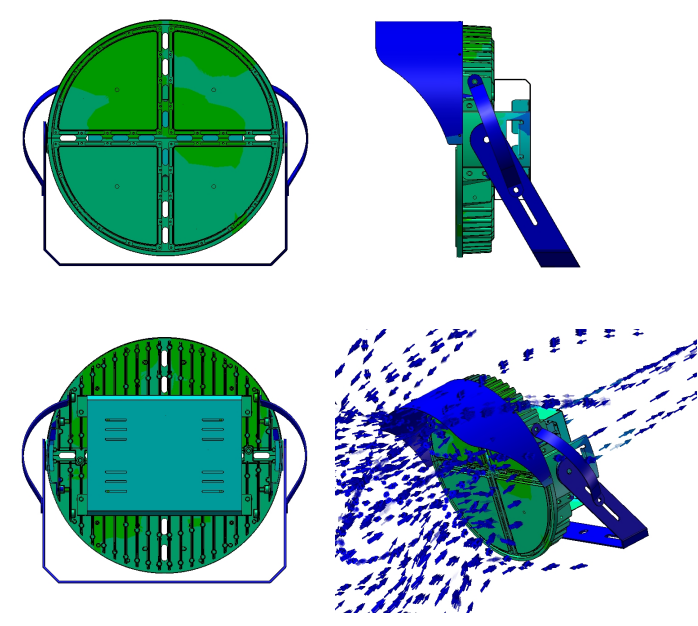

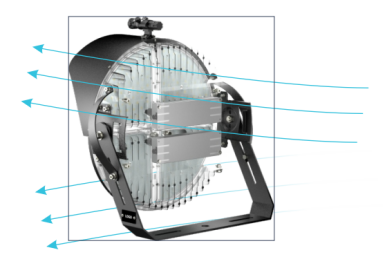

Air convection, thermoelectric separation technology:

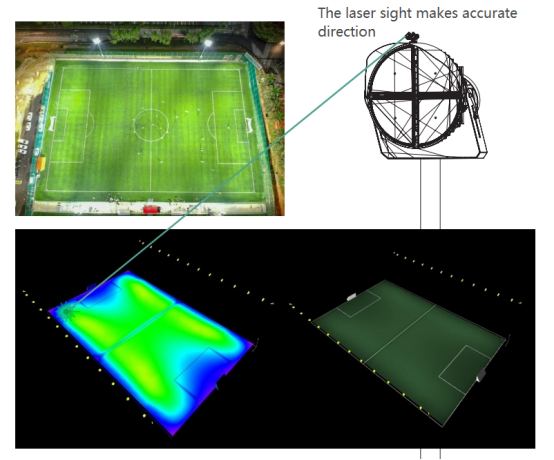

Dialux simulation and laser sight for direction;

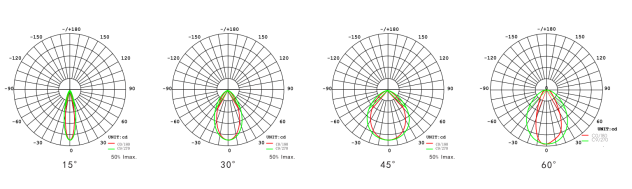

Light disbribution curve;

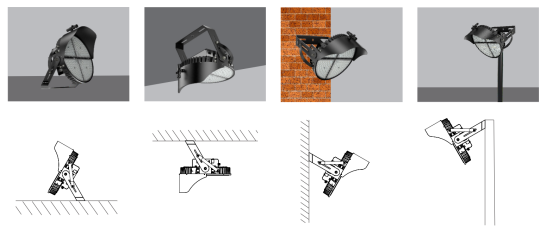

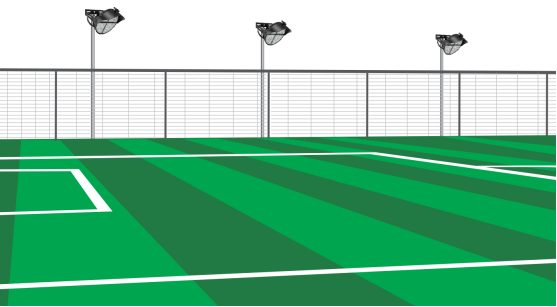

Installation Diagram;
Ground installation Ceiling installation Wall installation Pole installation
