Part No.
AL-SL-YS50W-SS
AL-SL-YS60W-SS
AL-SL-YS80W-S
AL-SL-YS100W-S
AL-SL-YS120W-S
AL-SL-YS150W-M
Rated Power
50W
60W
80W
100W
120W
150W
Luminous Flux:
6500lm
7800lm
10400lm
13000lm
15600lm
19500lm
Input Voltage
90-305VAC, 277-528VAC, DC24V,DC14V, 50-60Hz
LED Type
CREE /LUMILEDS 3030 chip
Color Temperature:
2700K-7000K
Conversion Efficiency:
92%
Power Factor:
>0.98
Beam Angle:
Type I/II/III/IV/V
Diffuser:
Lens
IP grade:
IP66
Operate Temperature:
-20°~+50°
Storage Temperature:
-20°~+50°
Color Rendering Index:
>70(Default)Ra>80
Life Span:
50 000 hrs
Housing Color:
Grey/Black/White
Luminance decrease:
Keep lighting 1000hours decrease 1%
Shape:
Rectangle
Material:
Aluminum + Glass
Application:
High way,street,road,pack,garden,bridge,airport,train station,square and so on
Features:
-Smooth appearance and line design
-Up to 100,000hrs @ L70 low maintenance cost

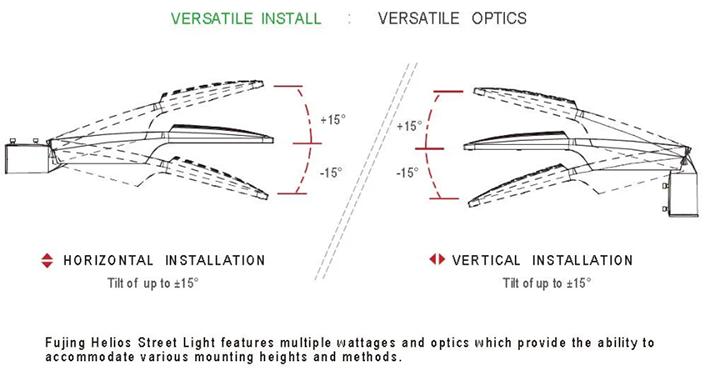

-It can be installed horizontally and vertically, and the adjustable angle is ±15°
-The protection grade is IP66 and IK08
-Tool-less opening of the driver box, ease of maintenance
-ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation
-High strength tempered glass lampshade with stronger light transmission performance
-The hollow design is adopted between the light source and the electric box to improve the airflow rate and heat dissipation capacity
-Type I/II/III/IV/ light distribution can meet the different requirements of road lighting
-Strobo-free stable optical output, power factor 0.95 Maintain the stability of the power grid
-LED: Epistar/LUMI LEDS 3030 Super Brighter LED, up to 130/150/170lm/w for lamps
-Meanwell driver choice: High efficiency and power factor, PF>0.95

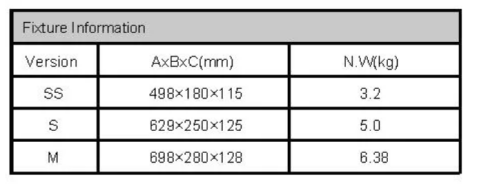

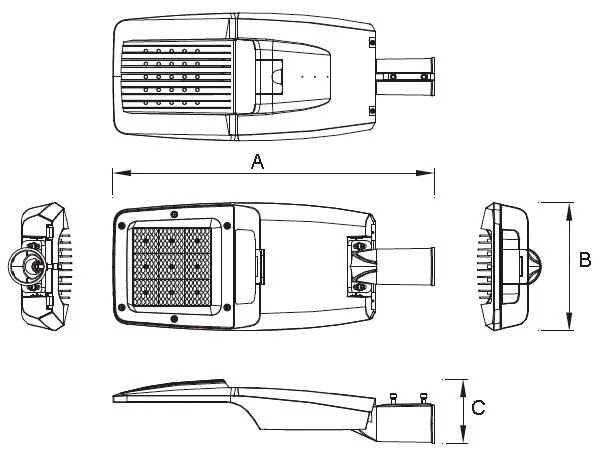

-Common input voltage 100-35V AC, special 12V/24V DC/AC CustomizedDimensions:

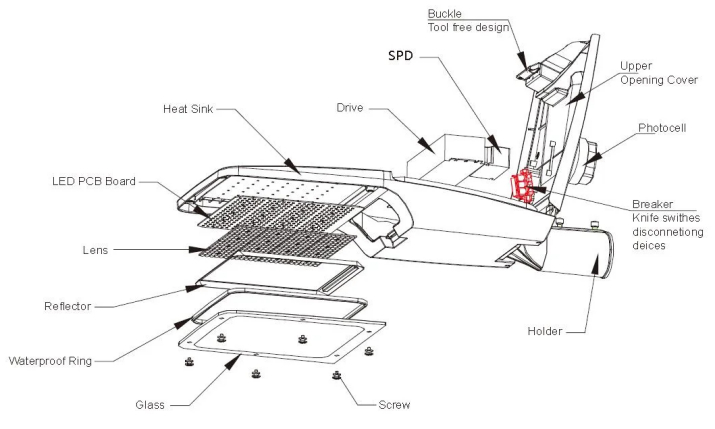

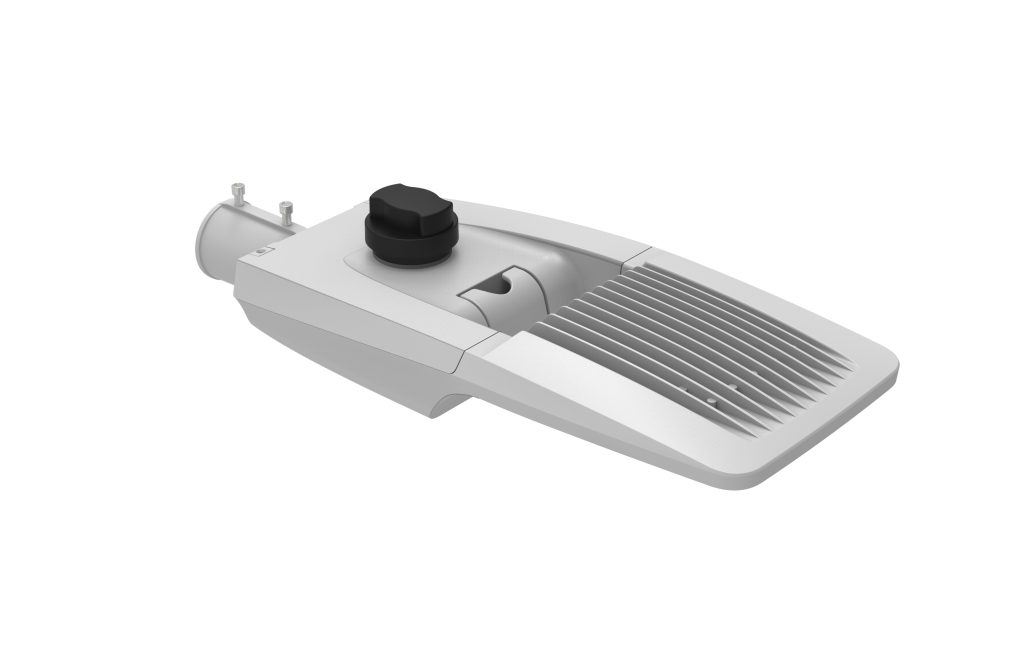

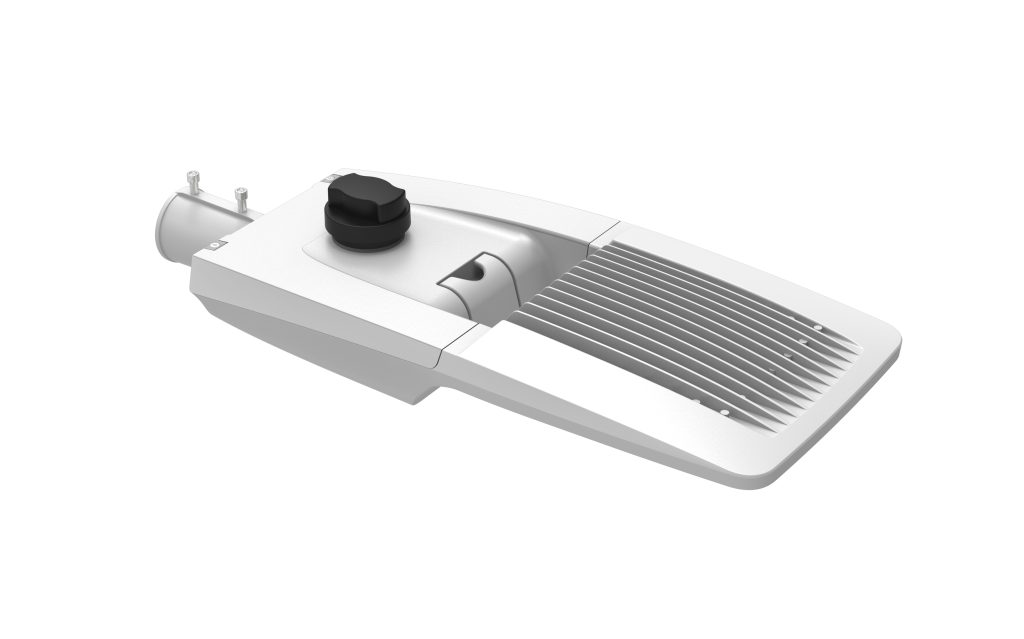

Details:

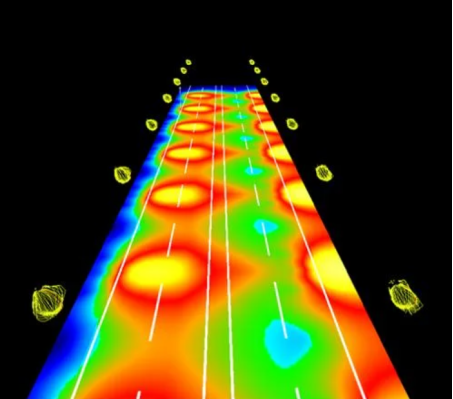

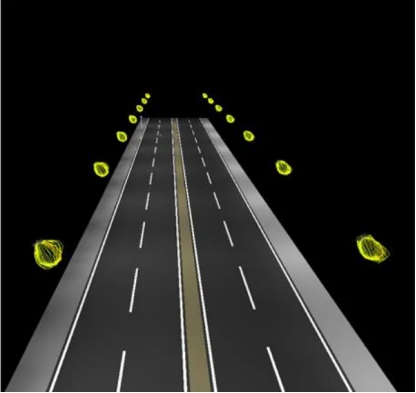

Free Dialux Simulation:
